Description of the geometry

This section describes briefly the geometry, with a particular focus on the names of the physical volumes of the various sources.

Note

The renderings on this page use the public geometry (see Geometry options).

The geometry is divided in various assemblies, as described in Visualization of the geometry.

HPGe strings

The strings assembly consists of the HPGe detectors and their support structure.

This is shown below:

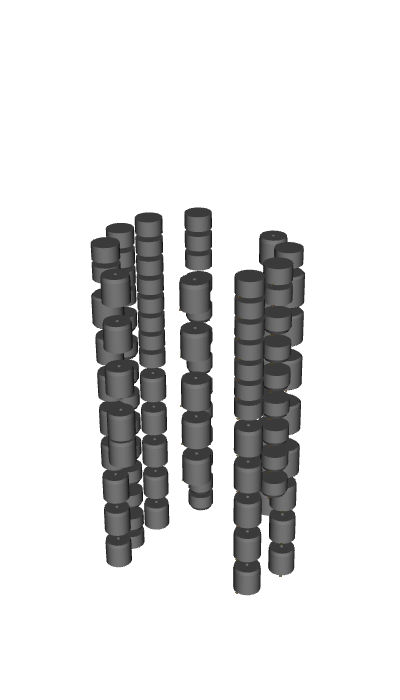

HPGe detector strings.

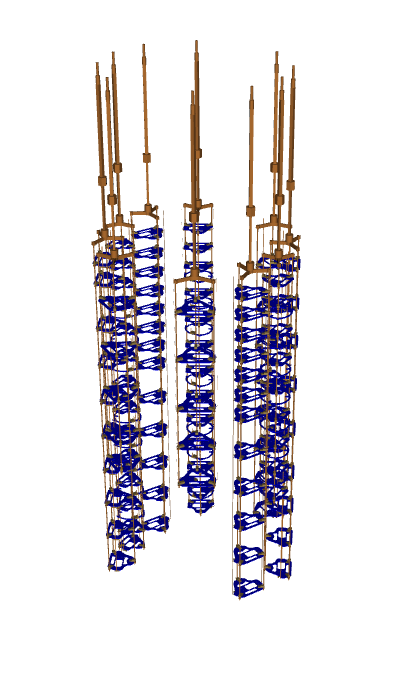

PEN and Copper HPGe support structure.

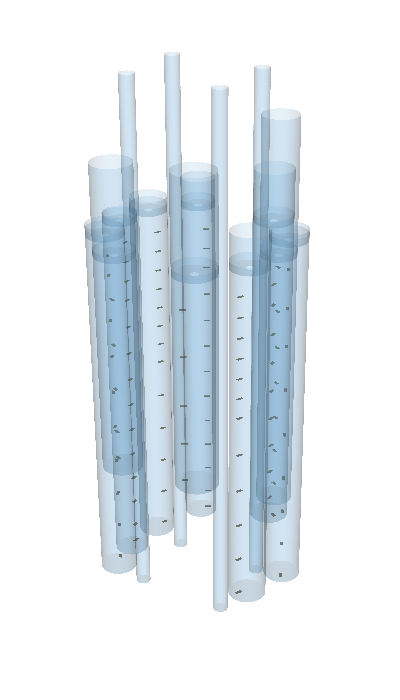

Nylon minishrouds and calibration tubes.



The left figure above shows the HPGe detectors, as explained in Naming conventions these are given physical volume names of the detector name (i.e. V99000A).

The center shows the detector holder structure. This is divided into several parts:

• the pen baseplates for each detector, with physical volume names pen_{NAME} where {NAME} is the detector name

  Note

  These are shown in yellow, green, red and blue in the rendering depending on the size

• for some detectors there are also top pen rings named pen_top_{NAME},

• the HPGe detectors are supported by a copper support structure, all parts of this structure are made of electroformed copper and have physical volumes prefixed with hpge_support_structure.

• nylon minishrouds surrounding each string, these have a name starting in minishroud, and calibration tubes which have names calibration_tube_{IDX} where {IDX} is the index of the SIS (see {doc}{cfg-calibration}).

Warning

Some components of the HPGe readout chain, (electronics cables etc.) are not yet implemented!

The hpge copper support structure consists of three components:

• a copper rod supporting each string (shown at the top of the rendering), these have names:

hpge_support_copper_string_support_structure_string_{STRING}

where {STRING} is the string number,

• a triangular copper support for each string (or “tristar”) named

hpge_support_copper_tristar_{SIZE}_string_{STRING}

where {SIZE} is the size of the string (small,medium, large, or xlarge).

• copper rods for each HPGe detector which have names:

hpge_support_copper_string_{STRING}_cu_rod_{IDX}

where {IDX} is an index of the rod.

Tip

To select all copper parts in remage you can use a wildcard hpge_support_copper.* and similarly to select all copper rods, tristar or string support structures.

Top plate

The top assembly consists of the top plate holding the CC4 electronics, currently this is a single physical volume called top_plate.

This is shown on the left figure of the rendering below.

Copper top plate

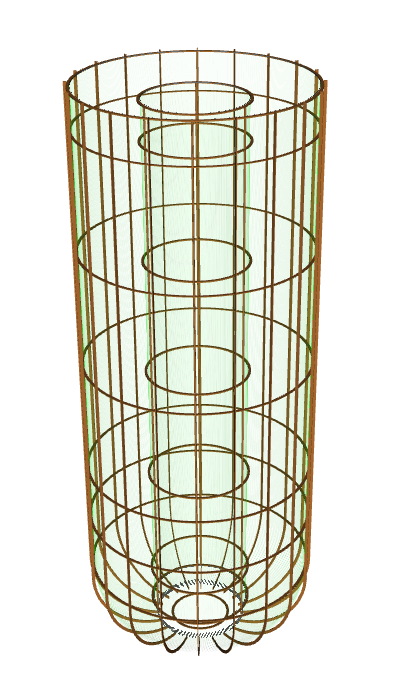

Fiber shrouds.



Fibers and SiPMs

The fiber shrouds for the LAr readout are shown in the right figure above.

As mentioned in Runtime configuration there are two modes for the optical fibers, either individual fibers or a segmented option.

In both cases the fiber volumes are divided into 4 parts:

• an outer TPB coating,

• two layers of cladding,

• the fiber core.

The optical fiber system consists of a large number of physical volumes, to enable concise remage macros the names are first prefixed with:

• fiber_inner: for the inner barrel fibers (inner cylinder),

• fiber_outer: for the outer barrel fibers.

Next the name contains an identifier of the part of the fiber either, tpb, cladding1, cladding2 or core.

The rest of the names give further information on the fiber, and uses the length of the fiber, whether it is part of the lower bend for the outer barrel and the fiber index to obtain a unique physical volume name.

Tip

For more users it is expected to use wildcards to select groups of optical fibers.

The SiPMs are named after the detector name (ie S001), and there are also physical volumes of a wrapping around the SiPMs with names {NAME}_wrap (where {NAME} is the SiPM name). This wrapping does not fully correspond to the wrapping used in the real experiment, however.

The copper support structures holding the fiber shrouds is named fiber_support_outer and fiber_support_inner for the outer and inner fiber barrels. These volumes are implemented as one large solid containing all parts.

Wavelength shifting reflector

The array is emersed in liquid argon (physical volume named lar) and surrounded by a tetratex and TPB lined copper foil for reflecting scintillation light (WLSR).

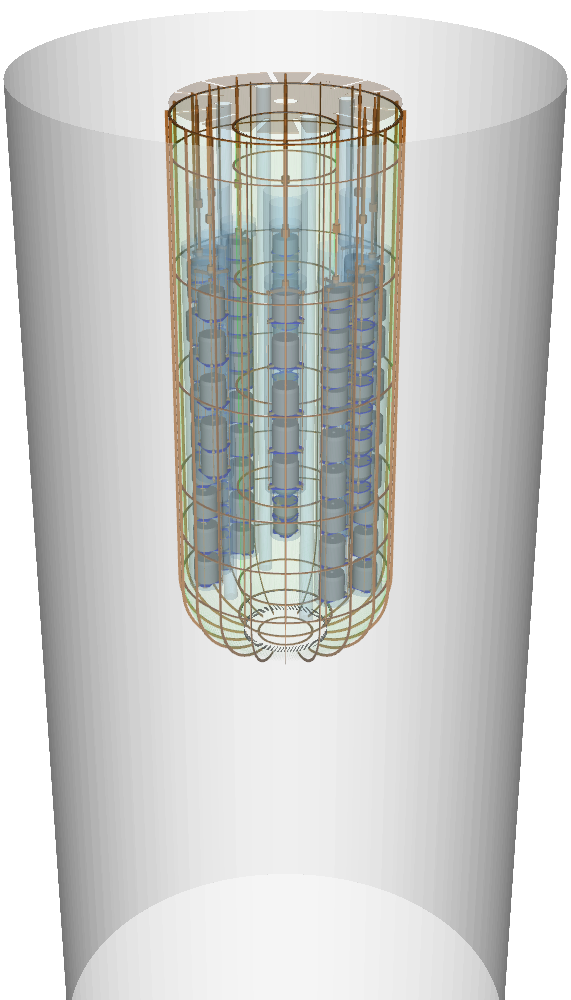

This is shown as the outer cylinder below, which shows all the main components of the experiment. The WLSR is the shown as the outer grey component.

This consists of three physical volumes:

• wlsr_outer the copper foil,

• wlsr_tetratex the tetratex coating,

• wlsr_tpb the TPB coating.
